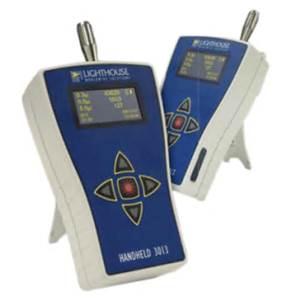

HANDHELD 3013

Using an ergonomic and lightweight design, the HANDHELD 3013 is Lighthouse’s newest handheld particle counter and is ideal for use where a smaller lightweight handheld counter is needed.

Offering 3 channels of simultaneous particle counting, the HANDHELD 3013 displays both cumulative and differential particle count data on its easy to read 2.7” (6.8 cm), 128×64 OLED screen. Its rechargeable battery allows up to eight hours of continual operation. Easily download data via its USB port using the Lighthouse Data Transfer Software, LMS XChange.

The HANDHELD 3013 will monitor particulate levels accurately and reliably, even in those “hard-to-reach” areas where two-handed operation is unsafe.

Designed and built by Lighthouse Worldwide Solutions, a name you can trust.

Benefits :

2 Year Warranty
Built-in Recipes and Reports make cleanroom testing and certification fast and easy
User Friendly Interface
International Support
Low Cost of Ownership
Applications :
ISO Cleanroom Certification
Filter Testing
Indoor Air Quality Investigations
Locate Contamination Sources
Process Verification, Validation
Quality Assurance
Portable Particle Measurements

Features:

0.3 - 10 μm Size Range
0.1 CFM (2.83 LPM) Flow Rate
View 3 Particle Sizes Simultaneously
Meets JIS B 9921 Standard
Built-in Tilt Stand
Real Time Data Display
128 x 64 OLED Screen
Rechargeable Li-Ion Battery
Large 1,000 sample Data Storage Memory
100 Location Labels
Choose from English, French, German, Italian or Spanish for Display Language
50% Counting Efficiency
USB Interface
Data Easily Downloaded to a Computer
Easy Interface Configuration
On Screen Data Buffer Viewing
Internal Audible Alarm
Easy One-handed Sampling
Ergonomically Designed
Lightweight - Only 1.5 lbs.
Compact and Easy to Handle

International Support
Low Cost of Ownership

ISO Cleanroom Certification
Filter Testing
Indoor Air Quality Investigations
Locate Contamination Sources
Process Verification, Validation
Quality Assurance
Portable Particle Measurements

Specifications

Size Range:	0.3 - 10.0 µm
Channel Sizes:	Standard: 0.3, 0.5, 5.0μm Optional: (specify at time of order) 0.3, 0.5, 0.7, 1.0, 2.5, 5.0, 10.0μm
Counting Efficiency:	50% @ 0.3μm, 100% for particles >0.45μm (per JIS B 9921)
Flow Rate:	0.1 CFM (2.83 LPM)
Laser Source:	Laser Diode
Zero Count Level:
Concentration Limits:	4,000,000 particles / ft³ @ 5% coincidence loss
Vacuum Source:	Internal Twin Diaphragm Pump
Display Language:	US English, French, German, Italian, Spanish
Communication:	USB Output port
Count Modes:	Automatic, Beep, Concentration
Supporting Software:	LMS XChange; LMS Express
Enclosure:	Molded ABS
Power:	Internal Lithium Ion Battery
Recharge Time:	Less than 2 hours to fully charge
Battery Life:	Up to 8 Hours of Continual Use
Dimensions:	4.2” (w) x 6.5” (h) x 1.9” (d) [10.5 x 16.5 x 4.8 cm]
Weight:	1.5 lbs (0.68 kg)

Conditions

Operating:	50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage:	14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

Accessories

Included:	LMS XChange Data Transfer Software; Operating Manual on CD; USB Interface Cable; AC Adapter; Purge Filter; Hard Carrying Case
Optional:	LMS Express Software; Printed Operating Manual
